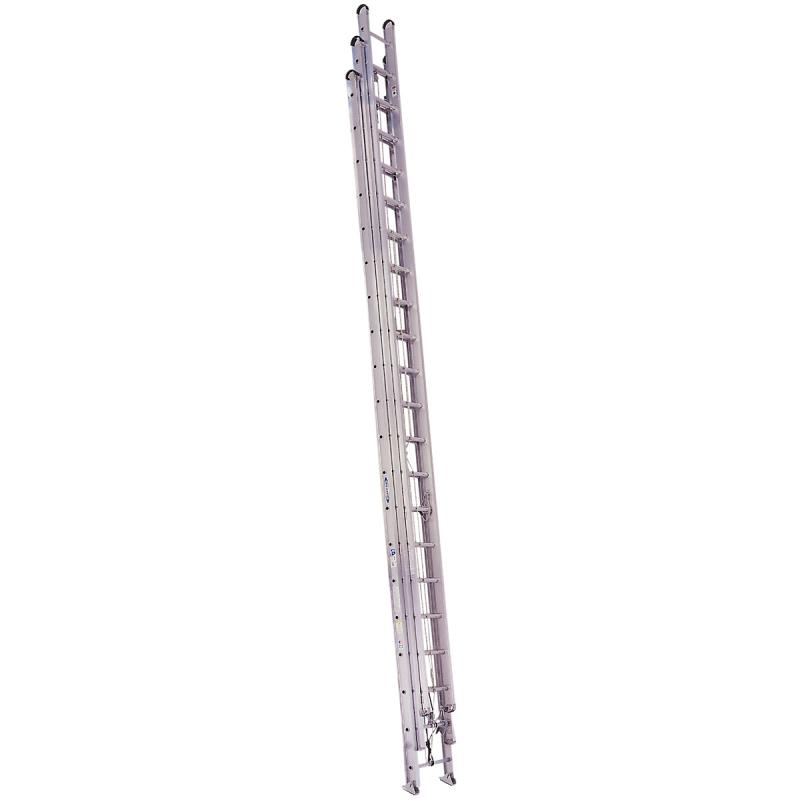

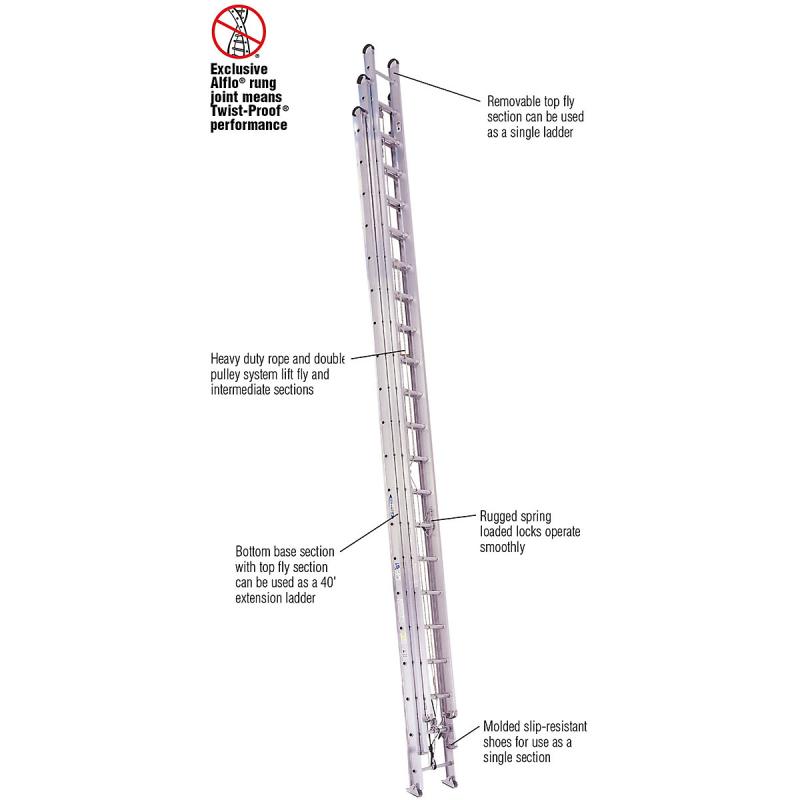

The model 560-3 is a 3 section aluminum extension ladder that has a duty rating of 250 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance. The top fly section can be removed and used separately as a single straight ladder. The bottom base section and intermediate section can be used as a 40' extension ladder. Shoes pivot for use on hard or penetrable surfaces. Rugged spring-loaded locks operate smoothly. Heavy duty rope and double pulley system lift fly and intermediate sections. Rugged spring-loaded locks operate smoothly.

(click image to enlarge)

Quick Overview

Features include:

Exclusive ALFLO rung joint means TWIST-PROOF performance
1-1/4" Slip-resistant Traction-Tred D-rungs
Heavy duty rope and double pulley system lift fly and intermediate sections
Heavy Duty extruded rung locks are spring loaded to operate smoothly
Removable top fly sectionincludes slip-resistant shoes for use as a single ladder
Bottom base section with top fly section can be used as a 40' extension ladder
Internal guides increase ease of operation
Extra heavy duty I-beam rails
Heavy duty, self-aligning, free-swinging shoe with slip-resistant tread and replaceable steel spur plate

Interested in this item or want more information?
Call Mon. to Fri. 7:00 AM - 4:30 PM or Sat. 7:30 AM to Noon. Sun. Closed
Phone: (808) 839-9061
Email: ihhmt@aol.com, accounting@cableone.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Rails Dimension: 4"

Flange Dimension: 2" (base & intermediate sections) 1-3/8" (top fly section)

Rung Dimension: 1-1/4"

Base Width: 23-1/2"

Specifications

Size: 60'

Reach Height: 49'

Max Working Length: 47'

Load Capacity: 250 lbs.

Type: Type I Duty Rating

Performance Rating: 3 Star

Material: Aluminum

Rung Type: Round

Foot Material: Slip-resistant pad

Number of Sections: 3

Certifications: ANSI A14.2 (2007); OSHA

Approx. Cu. Ft. Per Unit: 26.8

Approx. Shipping Wt. Lbs.: 179

Additional Information

Manufacturer: Werner Co.
