The 3100 stage platforms offer a 750 pound duty rating and allows for 3 people on one plank. The TWIST-PROOF design is ideal for ladder jack applications, swing stages or catwalks. Each stage is 24" wide.

(click image to enlarge)

Quick Overview

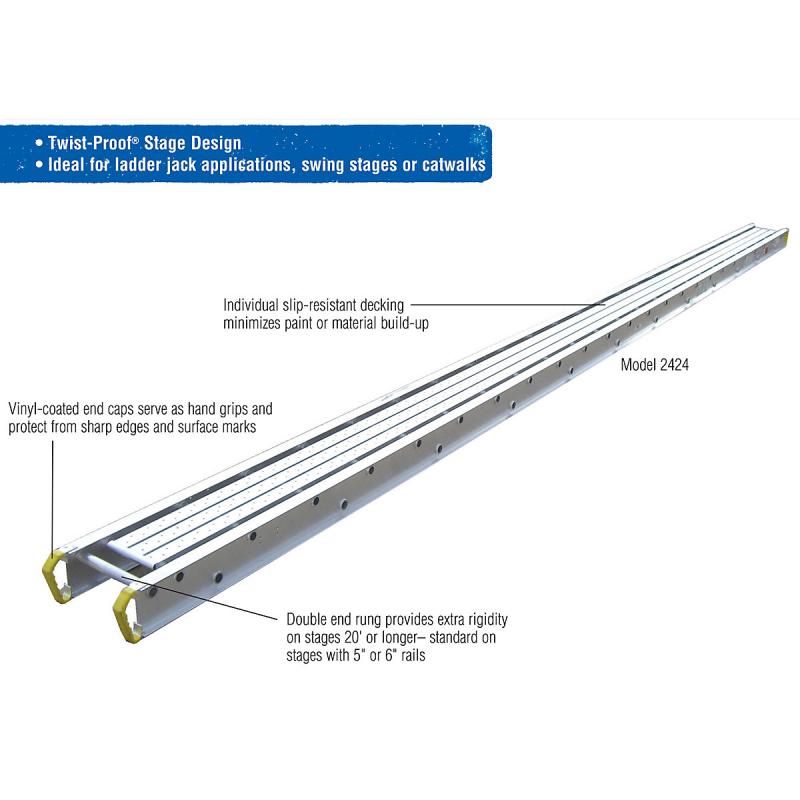

Features include:

Individual slip-resistant decking minimizes paint or material build-up
Vinyl-coated end caps serve as hand grips and protect from sharp edges and surface marks
Double end rung provides extra rigidity on stages 20' or longer
3-Person - 750 lbs. Rated

Interested in this item or want more information?
Call Mon. to Fri. 7:00 AM - 4:30 PM or Sat. 7:30 AM to Noon. Sun. Closed
Phone: (808) 839-9061
Email: ihhmt@aol.com, accounting@cableone.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Side Rail Depth: 6"

Rail Duty: Heavy Duty

Side Rail Flange: 2"

Specifications

Side Rail Length: 39'

Platform Width: 24"

Load Capacity: 750 lbs.

Certifications: ANSI A10.8 (2001); OSHA

Approx. Cu. Ft. Per Unit: 39

Approx. Shipping Wt. Lbs.: 365

Additional 3100 Series Models:

Model No.	Side Rail Length	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
3112	12'	7.92	64
3116	16'	13.44	92
3120	20'	16.8	115
3124	24'	24	145
3128	28'	28	204
3132	32'	32	236
3136	36'	36	323
3139	39'	39	365

Additional Information

Manufacturer: Werner Co.
