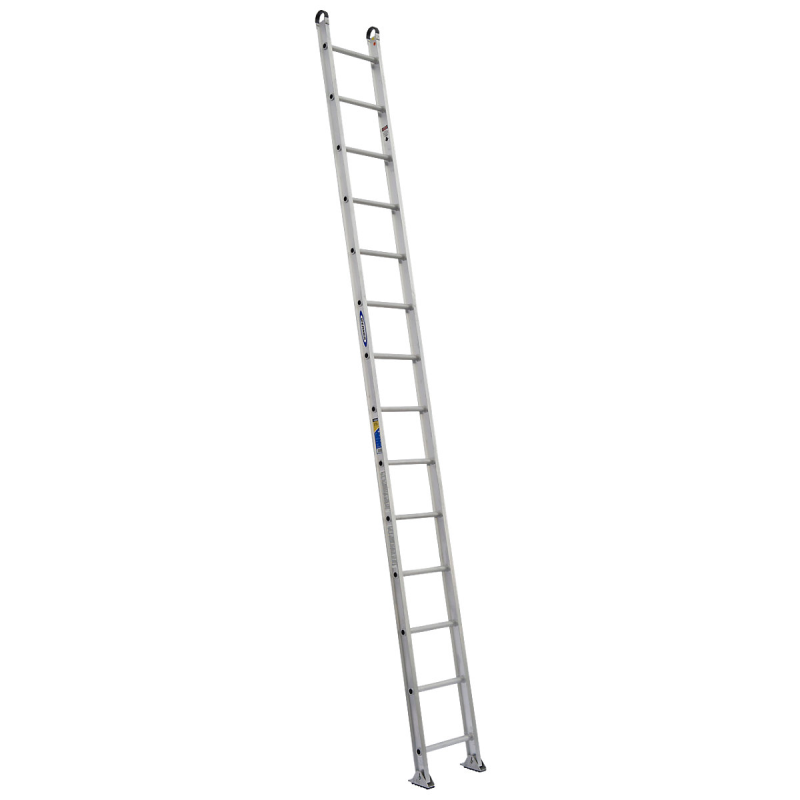

14' Type IAA Aluminum Round Rung Straight Ladder
514-1
Werner Co.
The 500-1 series are one-section round rung straight ladders with a duty rating of 375 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum round rungs are deeply serrated for slip resistance. The duty rating goes to 300 pounds with the 18', 20' and 24' lengths.
(click image to enlarge)
Quick Overview
Features include:
Exclusive ALFLO Rung joint means TWIST-PROOF Performance
1-1/4" Slip-resistant TRACTION-TRED round rungs
Extra heavy duty I-beam rails
Heavy duty, self-aligning, free-swinging shoe with slip-resistant tread and replaceable steel spur plate
Hoop end caps
Interested in this item or want more information?
Call Mon. to Fri. 7:00 AM - 4:30 PM or Sat. 7:30 AM to Noon. Sun. Closed
Phone: (808) 839-9061
Email:
ihhmt@aol.com, accounting@cableone.net
Can't find what you want? Give us a call and we can help you find it.
Details
Dimensions
Rails Dimension:
3"
Flange Dimension:
1-3/16"
Rung Dimension:
1-1/4"
Base Width:
16-7/8"
Specifications
Size:
14'
Reach Height:
17'
Load Capacity:
375 lbs.
Type:
Type IAA Duty Rating
Performance Rating:
5 Star
Material:
Aluminum
Rung Type:
Round
Foot Material:
Slip-resistant pad
Number of Sections:
1
Certifications:
ANSI A14.2 (2007); OSHA
Approx. Cu. Ft. Per Unit:
5
Approx. Shipping Wt. Lbs.:
27.5
Additional 500-1 Series Models:
Model No.
Size
Reach Height
Load Capacity
Type
Approx. Cu. Ft. Per Unit
508-1
8'
11'
375 lbs.
Type IAA Duty Rating
2.9
510-1
10'
13'
375 lbs.
Type IAA Duty Rating
3.6
512-1
12'
15'
375 lbs.
Type IAA Duty Rating
4.3
514-1
14'
17'
375 lbs.
Type IAA Duty Rating
5
516-1
16'
19'
375 lbs.
Type IAA Duty Rating
5.7
518-1
18'
20'
300 lbs.
Type IA Duty Rating
6.4
520-1
20'
22'
300 lbs.
Type IA Duty Rating
7.1
524-1
24'
26'
300 lbs.
Type IA Duty Rating
14
Additional Information
Manufacturer: Werner Co.
