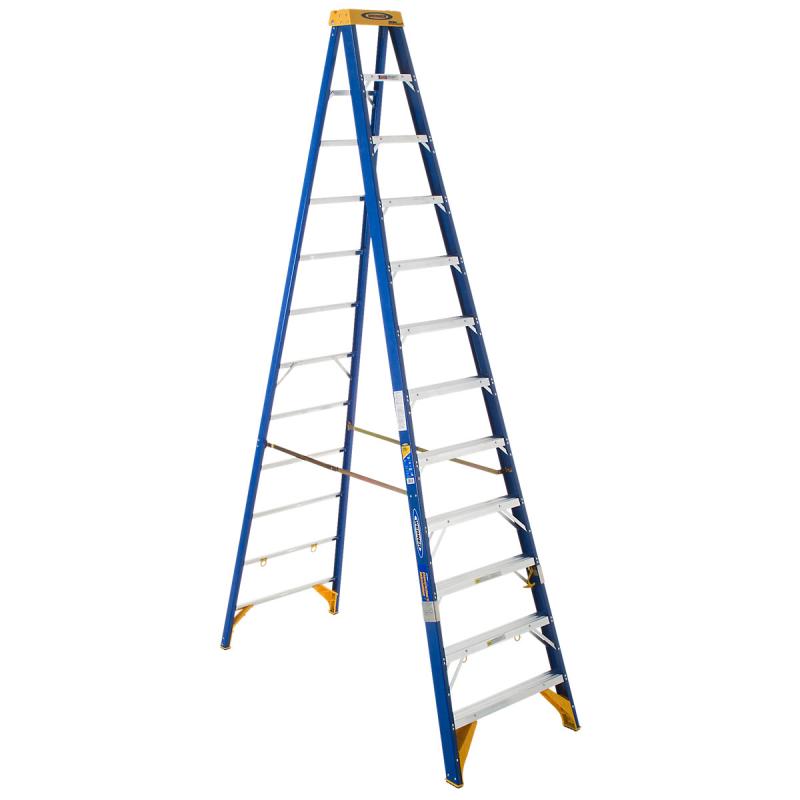

The Old Blue Series Electrician's ladder is not your ordinary stepladder -- it's a Jobstation. These Jobstations save time and increase productivity on the job. With a duty rating of 375 pounds, the Old Blue series features customized HolsterTops with ToolLasso sockets to accommodate even more tools. Wire spool holders for both large and small spools and conduit holders with a built-in cutting system make these ladders ideal for electricians. The EDGE bracing system helps to decrease damage to the rail. Fiberglass rails are non-conductive.

(click image to enlarge)

Quick Overview

Performance Overview

Style	Size	Reach Height	Load Capacity	Type
Single Sided	12'	16'	375 lbs.	Type IAA Duty Rating

Features include:

Customized HolsterTop with Lock-In System secures tools from falling. 3 ToolLasso included.
Full set of rear horizontals spaced one per foot
Slip-resistant TRACTION-TRED steps are double riveted and knee-braced
Heavy duty internal spreaders
The EDGE bracing system helps to decrease damage to rail
Shoe pads riveted to the EDGE structure
Convenient conduit cutting system
HolsterTop customized for electricians
Built-in wire spool holders for both large and small spools
Energy Diffusing Geometry
Every rivet backed up by metal plate or washer to protect rails
The blue and yellow ladder is an exclusive registered trademark of Werner Co

Interested in this item or want more information?
Call Mon. to Fri. 7:00 AM - 4:30 PM or Sat. 7:30 AM to Noon. Sun. Closed
Phone: (808) 839-9061
Email: ihhmt@aol.com, accounting@cableone.net

Can't find what you want? Give us a call and we can help you find it.

Details

Dimensions

Top Dimension: 5-3/4" x 13"

Front Rails Dimension: 3-1/8"

Front Flange Dimension: 1-3/16"

Rear Rails Dimension: 1-7/8"

Rear Flange Dimension: 1-3/16"

Steps Dimension: 3"

Specifications

Size: 12'

Reach Height: 16'

Max. Standing Height: 9'7"

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Approx. Width: 33-7/8"

Approx. Spread: 78-1/4"

With Pail Shelf: No

Spreader Material: Steel

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 15

Approx. Shipping Wt. Lbs.: 51.5

Additional 7400 Series Models:

Model No.	Size	Reach Height	Max. Standing Height	Approx. Width	Approx. Spread	Approx. Cu. Ft. Per Unit
OBEL04	4'	8'	1'11"	19-7/8"	29"	3
OBEL06	6'	10'	3'10"	23-3/8"	41-1/4"	5.3
OBEL08	8'	12'	5'9"	26-7/8"	53-5/8"	8.1
OBEL10	10'	14'	7'8"	30-3/8"	65-7/8"	12.5
OBEL12	12'	16'	9'7"	33-7/8"	78-1/4"	15

Additional Information

Manufacturer: Werner Co.
